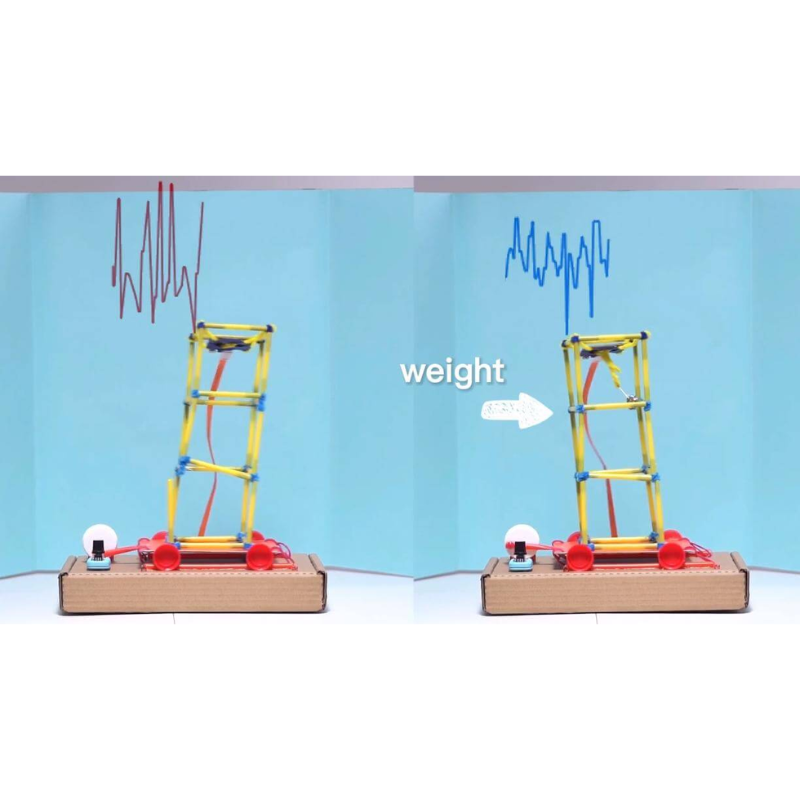

This earthquake-working mode combines a shake table and earth-proof structures from simple materials and BOSON modules.
The model simulates seismic ground motion during an earthquake. With a rotation sensor, you can change the speed of the motor to generate movement at different frequencies. It will be inspiring to test the effect of short and high frequency earthquakes on buildings.
A nature earthquake creates motions on 3 axes, but since our shake table is moving along the same direction, it will be easy to measure the acceleration on the X-axis with a micro:bit, to give you an accurate result of how strong the earthquake is. Fix the micro:bit at the top of the building, plug it with your computer, open Mind+, and let the data fly.
FEATURES
-
Plug-and-play
-
Reusable
APPLICATIONS
-
STEAM education
-
Earthquake working model
-
Ground motion simulation
-
Study on Earthquake-resistant structures
SPECIFICATION
-
Operating Voltage: 4.5V-5.5V
-
Dimension: 60 x 220 x 300mm/2.36 x 8.66 x11.8”
-
Weight: 300g
WHAT’S IN THE BOX:
-
Mainboard-1 IO x1
-
Motor Controller Module x1
-
Boson: Rotation Sensor x1
-
3xAAA Battery Holder x1
-
Boson: Micro Metal Gear Motor x1
-
Cable 10cm x2
-
Package Box x1
